Here’s some photos of some of the projects we’ve built over the years.

Project 1

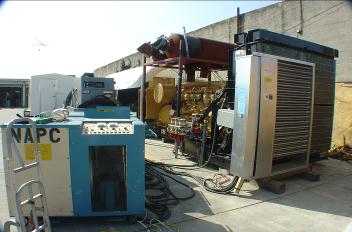

Here’s a Caterpillar 1100 kW Standby Generator being load tested– both resistive and reactive -prior to installation within the customer’s facility.

Caterpillar 3512 diesel generator hooked up to load banks for customer witness testing prior to installation within a California telecommunications facility.
NFPA110 compliance testing.

Project List– generators, tap boxes,

controls, exhaust systems, load testing, misc.

Outline sketch---Generator tap box support circuits assembly with volt meter and rotation meter- this allows quick and easy confirmation that an installed portable generator is the proper phase rotation and voltage level as the connected building.

Project 2

Generator Tap Box

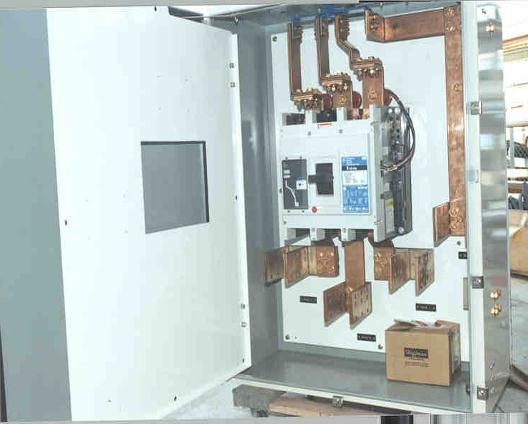

Here’s an emergency generator tap box we designed and built– we fabb’ed all the internal copper bus bars.

This assembly allows for a quick– safe connection of a portable generator to the customer’s facility.

















A separate ‘support circuits’ enclosure has been provided for use with the tap box pictured above. This allows one to quickly confirm that the portable generator system voltage, phase rotation are compatible with the building. Also included are receptacles to support the portable gen’s jacket water heater and start battery charger– and interface remote status alarms.

Generator tap box assembly is NEMA 3R/4 rated, for outdoor use, with double hole cable landings (at the bottom) to prevent cable lugs from turning (and inadvertently loosening).Generator tap box support circuits assembly with volt meter and rotation meter- this allows quick and easy confirmation that an installed portable generator is the proper phase rotation and voltage level as the connected building.

Project 3

Here’s a 350 kW Caterpillar module being built for a site with very strict acoustical limits– the completed module provides less than 60 dBA at the nearest property line.

Project 4

Here’s a 750 kW Caterpillar generator installed within an existing building– we sound attenuated the walls, exhaust, etc. to minimize the noise level for workers within the building itself and neighbors at adjacent properties.

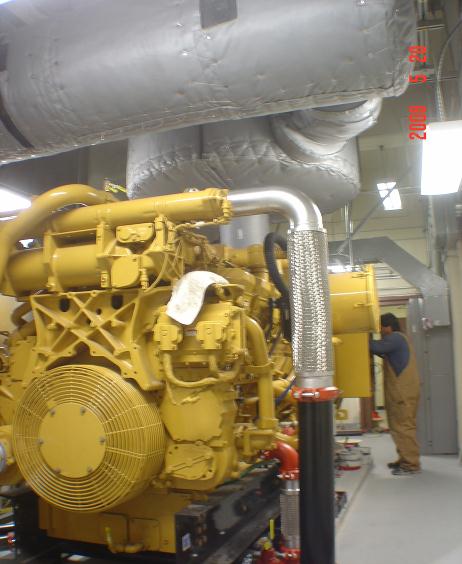

Sound attenuated, 750 Caterpillar diesel generator installation, within a telecommunications building.

Home | About Us | Contact Us | Service List | Project List

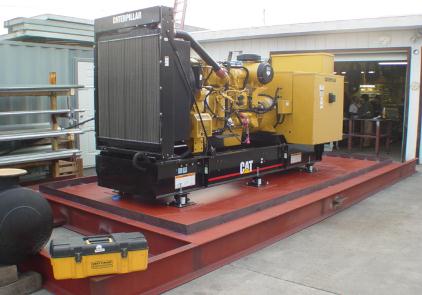

Dual circuit cooling for a Caterpillar diesel generator- both the turbo aftercooler and main cylinder jackets require a separate loop.Caterpillar 350 kw standby generator being build upon a secondary contained base skid.CAT 350 kw generator during construction for a California telecommunications facility.Complete 350 kW diesel generator within a super quiet acoustical housing. This generator provides full load operation at less than 60 dBA at 3 meters.

Project 3

Notice that this skid uses the factory provided skid mount radiator– no parasitic loads, no auxiliary fans with ancillary starters, breakers, etc. that can fail.



Also note that the area under the engine has a containment sump to prevent any potential oil or coolant from polluting the surrounding area in the event of a spill.

Project 3

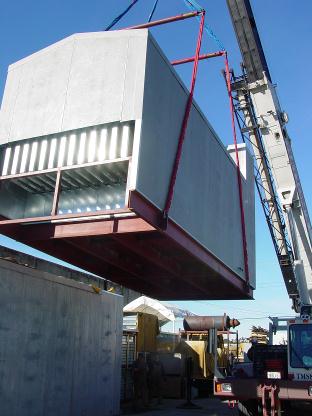

Here’s the completed module being shipped to site. Note the air inlet baffles on the end of the module– they let air in, but keep sound from emanating out!

Standby-emergency diesel generator low noise remote radiator installation -note the flexes on all pipes and conduits.

Project 4

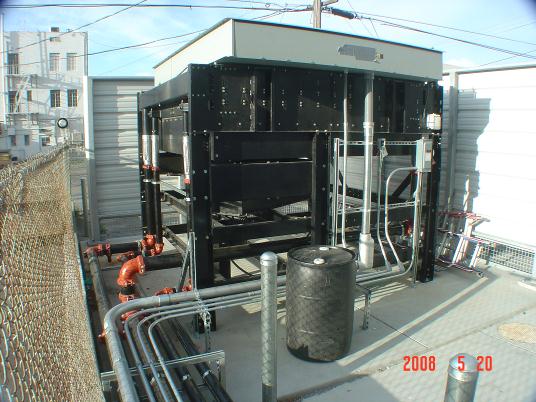

Here’s the remote radiator for the above picture Caterpillar engine generator.

Note the flex connections on all pipes and conduits– also note that this radiator contains two separate cooling circuits– a jacket water circuit and an aftercooler circuit– a feature required on many low emission engines.

Project 4

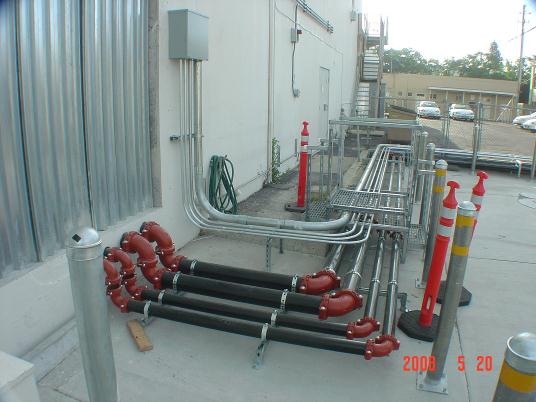

Here’s the piping and conduit run interfacing the above pictured radiator and engine.

We used Victaulic fittings for this system to allow for ease of service and repair– note the bollards placed to protect the piping from vehicles within the parking lot.
